Drywall Light steel keel channel roll forming machine

  • Drywall Light steel keel channel roll forming machine
  • Drywall Light steel keel channel roll forming machine
  • Drywall Light steel keel channel roll forming machine
  • Drywall Light steel keel channel roll forming machine

Drywall Light steel keel channel roll forming machine

    Payment Type: L/C,T/T,D/P
    Terms of Trade: FOB,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 10 Days
    Packaging: as customer's need
    Productivity: 25m/min
    Brand: zhongtuo
    Transportation: Ocean,Land
    Place of Origin: cangzhou
    Supply Ability: 50 sets/month
    Certificate: CE, ISO, SGS, IAF,CNAS

Basic Info

Model No.: ZT-005-86

Product Description

Drywall Light steel keel C U Channel Roll Forming Machine

brief introduction

Drywall Light steel keel C U Channel Roll Forming Machine is one which can produce C shape keel and U shape keel with one machine. It is made up of uncoiler , feeding and leveling system , main roll forming system, shearing system, controll system, hydraulic station and so on.

The width and height are adjustable.

Different models for optional: U shape track,C shape stud,V shape keel or W shape keel.

Fully Automatic Drywall Studs And Tracks Roll Forming Machine

Stud and track machine

2


Metal Drywall CW UW Sheet Roll Forming Machine Prices Wall C U Channel Making Machine

Fully Automatic Drywall Studs And Tracks Roll Forming Machine

Feasure of drywall c-u light keel machine

  1. We can design punching mound according to client's demand.
  2. Levelling system can make sure the final products straight without twisting or bending.
  3. c-u channel Roll Forming Machine can let roll forming and punching as a whole without stop.
  4. The whole process of production is controlled by computer, easy to operate.

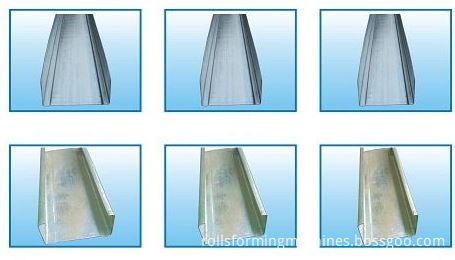

CU stud and truss


CU stud and truss Application Range

Drywall Light steel keel C U channel roll forming machine is nomally used in facturies, civil construction, warehouse, exhibition building, stadium supermarket, big mall and so on.

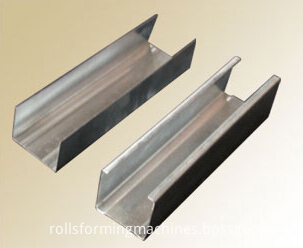

CU stud and truss



Technical specification of drywall c-u light keel machine

  1. Material type: GI
  2. Material thickness: 0.3-0.8mm(thickness can as customer's requirement)
  3. weight : 3.5 Ton
  4. Voltage: 380V / 50Hz/ 3 Phase (as customer's request)
  5. Frame: middle plate welded , memorial arch frame type
  6. Frame thickness: 25 mm
  7. Drive mode: gear
  8. Material of rollers: Gcr12Mov
  9. Material of shafts: φ50mm
  10. Number of rollers: 10 rollers
  11. Main power: 5.5 KW Cycloidal planetary gear speed reducer
  12. Forming speed: 20 m/min
  13. Main roll forming machine size: 4500*1000*1400mm
c-u channel roll forming machine

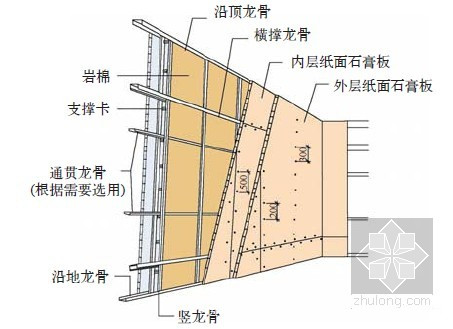

Light gauge steel is a new building material. With the development of China`s modernization, light steel keel widely used in hotels, airport, railway stations, factories, office buildings, interior decoration, ceiling and so on.

Feasure: light weight, high strength, waterproof, shockproof, sound proof, sound absorbing, constant temperature. Short during, simple construction and so on.


some drywall profile drawing for your reference

c-u channel roll forming machine
