Linear Cable Tray Roll Forming Machine

Linear Cable Tray Roll Forming Machine

    Payment Type: L/C,T/T
    Terms of Trade: CIF
    Delivery Time: 30 Days

Product Description

Description

The base frame of machine is adopted to big gantry milling ,make sure that have a effective and accuracy product Notice :it is an important techniques.
The forming station is covered by the chrome-plated (other supplier`s paint) to resist the corrosion ,the firm thickness and the chrome-plated can guarantee the machine has a longer life! The big strong nut ,and chrome-plated too!Has a long life to use .
When you adjustment the size , you just need to see the scale ,then will know it standard or not . It can save time and be convenient when adjust .
The oil filler:When the machine maintaining,you just need pour the oil into the hole,do not take them down.save a lots time and tidy.
Using the worm gear box (not chain)to convey the machine :guarantee that a more steady and more precision working .the keep the gear box has the oil ,then have a at least 20 years .It is more safety to work ,too.
The surface is covered by the 0.15 mm chrome plated.in order to prevent rust between the roller and axel .


Why choose Linear Cable Tray Roll Forming Machine?
1. In the design of punching part, we adopt servo feeding technology to make sure that the punching accuracy can reach more or less than 0.15 mm.
2. For making the finsihed cable tray without distortion in perfect shape, which may be caused by rear cutting, our cable tray Roll Forming Machine is designed with front cutting device. This roll forming production line is also equipped with a proper guiding device to ensure that the front-cutting sheet can be fed into the roll former correctly.
3. Our cable tray roll forming machines (cable tray roll forming production lines) are designed with cantilever so that the width can be adjusted automatically by electronic controller.
4. Machine left frame could be moved fully automatic to expand the cable tray width.
5. Middle plate frame with protection guard to make sure the security when using machine.


Linear Cable Tray Roll Forming Machine




Technical parameters:


Serial number

Item

Unit

Parameters

Remark

1

Suitable material

Type

CR,HR Sheet;Galvanized Sheet

strength

MPa

≤350

Thickness

mm

1.6-3.2

Coil internal diameter

mm

500,600

Coil weight

T

5

2

Specification

mm

100-320

3

Line speed

m/min

25

4

Roller material

D2 quenching treatment

5

Roller driven type

External chain transmission

6

Operating system

Windows2000

7

Total motor power

Kw

About 65

8

Electric control system

PLC automatic control system

9

Dimension(L*W*H)

m

30X2X1.7

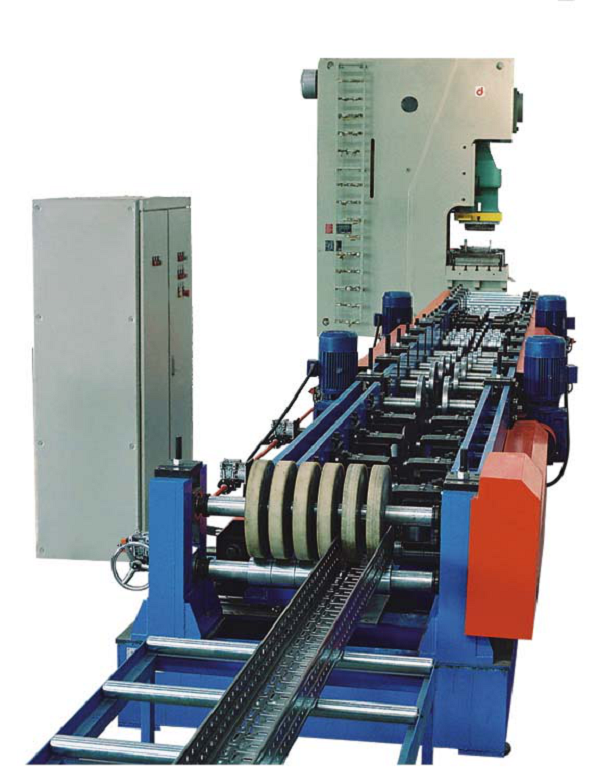

Steel Cable Tray Roll Forming Machine

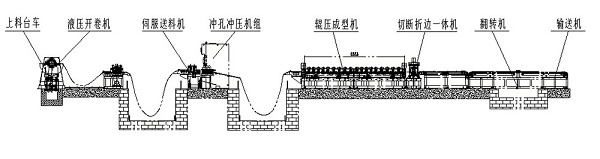

Uncoiling –leveling- Looping-Feeding-punching -Roll forming-Cutting –Discharging

Steel Sheet Roll Form Machine


Xinxiang Tianfeng Machinery Manufacture Co., Ltd.

 Xinxiang Tianfeng Machinery Manufacture Co., Ltd. is a leading manufacturer of steel plate coiling machinery, cold-bending & rolling steel plate shaping machinery and automatic production lines. The products are mainly used in steel structure industry for producing C&Z type purlins, colored wall and floor protecting steel plates, thermal insulating plates and load-bearing plates for buildings, and other complementary thin wall cold-bending shaped steel plates, expressway railings, colorful decorating and protecting steel plates for high-grade steel structure residences.
Roll forming line is possible to produce various profiles through add quick-change unit. The whole line can be controlled by remote controller, integral guard was covered on the machine, which complying with European Unions safety standards and has been passed CE.
